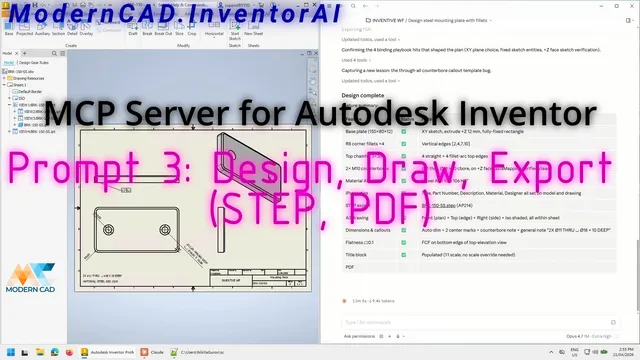

One prompt takes a steel mounting plate from nothing to deliverables: the modelled part, a fully dimensioned A3 drawing with callouts and a populated title block, and STEP and PDF exports with iProperties set on both the model and the drawing.

Access to Commands Isn’t the Breakthrough… Guidance Is.

LLMs generate responses based on prompts – but when you’re controlling real software, that’s not enough.

You need structure, and this is why we’ve introduced a pre-prompt layer – rules and context that sit before the main request and guide how the AI approaches the task.

This is where things really clicked.

Through testing, debugging and iteration, we built a system that dramatically improved output quality and consistency.

Not just: “Do this”… but: “Here’s how to do it properly”.

This is the difference between automation and usable, reliable outcomes.

The MCP gives AI access – but the pre-prompt makes it work.

This is now part of the product…
